Supporting information: Lignite reduces the solubility and plant uptake of cadmium in pasturelands补充材料：褐煤降低牧场中镉的溶解度及植物吸收

Simmler M, Ciadamidaro L, Schulin R, Madejón P, Reiser R. Clucas L, Weber P, Robinson BH (2013). Lignite reduces the solubility and plant uptake of cadmium in pasturelands. Environmental Science and Technology 47, 9, 4497-4504.

Converted from the published article. Figures and wide tables are reproduced as images from the original.

本页由已发表的论文转换而成。中文译文由人工智能（Claude）翻译，仅供参考，以英文原文为准；参考文献、作者信息、物种学名及图表中的文字保留英文。

Table S1: Treatments of Batch Experiment 1. The added Cd concentrations were measured in the corresponding control treatments without sorbent (mean ± SE, N = 3). The pH values were measured after 2 hours agitation (mean ± SE, N = 5, 4 or 3 according to the number of Cd levels).表S1：批量试验1的处理。添加的Cd浓度在未加吸附剂的相应对照处理中测定（平均值 ± 标准误，N = 3）。pH值在振荡2小时后测定（平均值 ± 标准误，根据Cd水平数，N = 5、4或3）。

sorbent (5 gin 30 ml)吸附剂（5 g加入30 ml）	added Cd concentration (mg/l)添加Cd浓度（mg/l）	pH	acid/base addition酸/碱添加量
no sorbent	0, 0.12 (0.00), 0.39 (0.001), 1.26(0.001),3.75(0.003)	5.0 (0.05)	-
0, 0.12, 0.39, 1.26	2.8 (0.02)	300 µl HNO31:10
0, 0.12, 0.39, 1.26	4.3 (0.03)	-
Soil 1	0, 0.12, 0.39, 1.26	4.8 (0.02)	50 µl 2 M KOH
0, 0.12, 0.39, 1.26	5.2 (0.02)	100 µl 2 M KOH
0, 0.12, 0.39, 1.26	6.5 (0.06)	250 µl 2 M KOH
0, 0.12, 0.39, 1.26	7.5 (0.03)	400 µl 2 M KOH
0, 0.12, 0.39, 1.26, 3.75	3.4 (0.01)	1 ml HNO3 1:10
0, 0.12, 0.39, 1.26, 3.75	4.3 (0.01)	-
0, 1.26, 3.75	4.9 (0.01)	100 µl 10 M KOH
Lignite	0, 1.26, 3.75	5.4 (0.02)	200 µl 10 M KOH
0, 1.26, 3.75	6.8 (0.03)	500 µl 10 M KOH
0, 1.26, 3.75	8.2 (0.1)	750 µl 10 M KOH

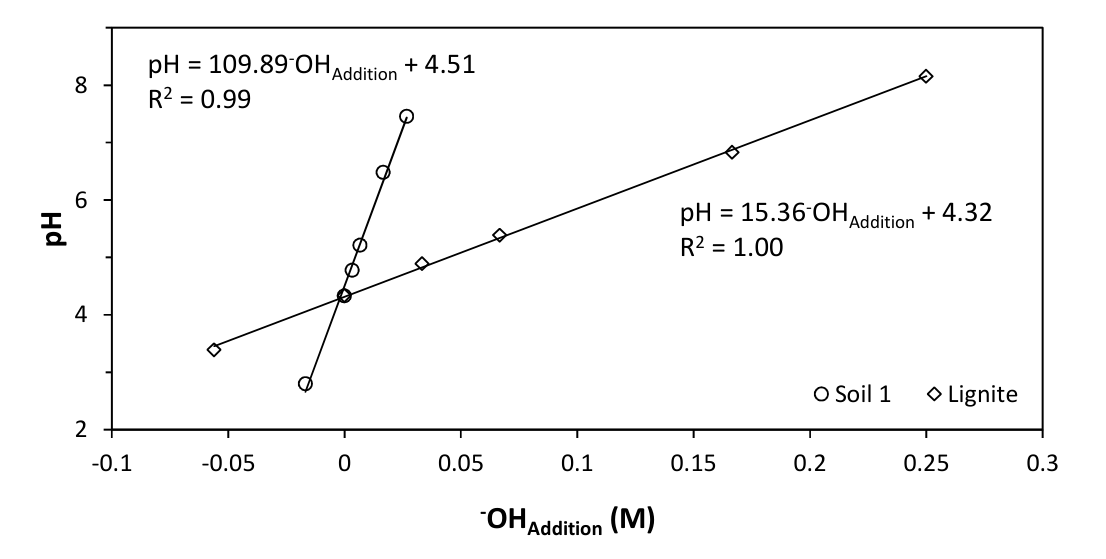

Figure S1: pH as a function of acid/base addition represented by the corresponding –OH equivalent. Lines represent fitted linear model (formula and R2given in figure). — **Figure S1: pH as a function of acid/base addition represented by the corresponding** ^–**OH equivalent. Lines represent fitted linear model (formula and R**²**given in figure).图S1：pH随酸/碱添加量（以相应的** ^–**OH当量表示）的变化。直线为拟合的线性模型（公式及R**²**见图中）。**

Table S2: Influence of lignite addition on soil pH and soluble concentrations of the macronutrients P and S in the pot experiment. Mean (SE), N = 5. Means with the same letter are not significantly different.表S2：盆栽试验中褐煤添加对土壤pH及大量营养元素P和S可溶性浓度的影响。平均值（标准误），N = 5。标有相同字母的平均值之间无显著差异。

treatment soil处理土壤	lignite (wt%) 褐煤（wt%）	pH (H2O)	P (mg/kg)	S (mg/kg)
0	5.08^a	4.4 (0.5)^b	28 (5)^b
unspiked	1.0	5.01^b	5.2 (0.3)^ab	32 (2)^b
3.4	5.02^b	4.3 (0.5)^b	30 (4)^b
7.1	4.98^b	6.8 (0.9)^a	59 (8)^a
LSD(α = 0.05)		0.06	1.8	16
0	5.05^a	4.1 (0.5)^a	27 (3)^a
limed	spiked	1.0	5.06^a	4.8 (0.1)^a	33 (1)^a
un		3.4	4.98^b	5.1 (0.9)^a	38 (7)^a
LSD(α = 0.05)		0.04	1.8	13
0	4.87^a	4.3 (0.5)^a	74 (18)^a
biosolids	1.0	4.88^a	5.7 (0.7)^a	58 (10)^a
3.4	4.90^a	5.8 (0.6)^a	63 (5)^a
7.1	4.88^a	5.4 (0.6)^a	74 (10)^a
LSD(α = 0.05)		0.05	1.8	34
0	5.90^a	2.8 (0.4)^b	23 (3)^c
unsiked	1.0	5.75^a	3.6 (0.4)^ab	31 (4)^bc
p	3.4	5.42^b	4.2 (0.6)^a	38 (5)^ab
7.1	5.32^b	4.3 (0.5)^a	47 (5)^a
LSD(α = 0.05)		0.16	1.4	13
0	5.64^a	3.8 (0.5)^a	30 (4)^ab
imed	spiked	1.0	5.58^a	3.4 (0.22)^a	29 (2)^b
l		3.4	5.47^b	4.2 (0.4)^a	39 (3)^a
LSD(α = 0.05)		0.06	1.2	10
0	5.51^ab	2.8 (0.4)^b	61 (16)^a
biosolids	1.0	5.56^a	4.6 (0.6)^ab	66 (12)^a
3.4	5.41^bc	5.3 (0.3)^a	68 (10)^a
7.1	5.28^c	4.8 (0.7)^a	75 (8)^a
LSD(α = 0.05)		0.12	1.9	33

Table S3: Influence of lignite addition on soluble concentrations of the micronutrients Zn, Cu, Fe and Mn in the pot experiment. Mean (SE), N = 5. Means with the same letter are not significantly different.表S3：盆栽试验中褐煤添加对微量营养元素Zn、Cu、Fe和Mn可溶性浓度的影响。平均值（标准误），N = 5。标有相同字母的平均值之间无显著差异。

treatment soil处理土壤	lignite (wt%) 褐煤（wt%）	Zn (mg/kg)	Cu (mg/kg)	Fe (mg/kg)	Mn (mg/kg)
0	2.0 (0.4)^a	0.021 (0.006)^a	3.0 (0.2)^b	35 (4)^b
unspiked	1.0	1.8 (0.1)^a	0.018 (0.003)^a	4.0 (0.27)^b	39 (2)^ab
3.4	1.4 (0.2)^a	0.011 (0.003)^a	4.1 (0.4)^b	34 (4)^b
7.1	2.0 (0.5)^a	0.023 (0.006)^a	9.0 (1.0)^a	49 (6)^a
LSD(α = 0.05)		1.0	0.014	1.8	13
0	1.4 (0.2)^a	0.013 (0.004)^a	3.0 (0.4)^b	30 (4)^a
limed	spiked	1.0	1.6 (0.0)^a	0.016 (0.000)^a	4.2 (0.2)^b	38 (1)^a
un		3.4	1.3 (0.2)^a	0.013 (0.004)^a	6.1 (0.9)^a	35 (5)^a
LSD(α = 0.05)		0.5	0.009	1.6	12
0	11.1 (1.6)^a	0.073 (0.011)^a	3.6 (0.4)^c	31 (3)^a
biosolids	1.0	10.0 (2.1)^a	0.062 (0.012)^ab	5.9 (0.6)^b	36 (4)^a
3.4	9.8 (0.7)^a	0.054 (0.005)^ab	6.8 (0.7)^ab	40 (4)^a
7.1	7.5 (1.0)^a	0.043 (0.007)^b	8.7 (0.8)^a	40 (4)^a
LSD(α = 0.05)		4.0	0.026	2.0	11
0	0.6 (0.1)^a	0.016 (0.006)^a	3.5 (2.2)^a	20 (2)^b
unspiked	1.0	0.6 (0.1)^a	0.017 (0.002)^a	1.7 (0.2)^a	25 (2)^ab
3.4	0.7 (0.1)^a	0.010 (0.003)^a	2.9 (0.4)^a	27 (4)^ab
7.1	0.6 (0.1)^a	0.012 (0.002)^a	4.3 (0.3)^a	31 (3)^a
LSD(α = 0.05)		0.3	0.010	3.3	8.5
0	0.6 (0.1)^ab	0.017 (0.004)^a	1.7 (0.2)^b	24 (3)^a
med	spiked	1.0	0.6 (0.0)^b	0.012 (0.002)^a	1.9 (0.1)^b	24 (2)^a
li		3.4	0.8 (0.1)^a	0.019 (0.006)^a	3.1 (0.3)^a	31 (2)^a
LSD(α = 0.05)		0.2	0.013	0.6	7
0	7.5 (1.8)^a	0.068 (0.022)^a	1.6 (0.2)^c	21 (3)^b
biosolids	1.0	5.7 (1.4)^a	0.053 (0.012)^a	2.3 (0.3)^bc	28 (4)^ab
3.4	4.3 (1.2)^a	0.043 (0.009)^a	3.1 (0.3)^b	34 (2)^a
7.1	4.8 (0.6)^a	0.037 (0.005)^a	4.8 (0.7)^a	36 (3)^a
LSD(α = 0.05)		3.9	0.038	1.2	10

Table from page 4 of the original article

Table from page 5 of the original article

Table from page 6 of the original article

Table from page 7 of the original article

Figure from page 8 of the original article
